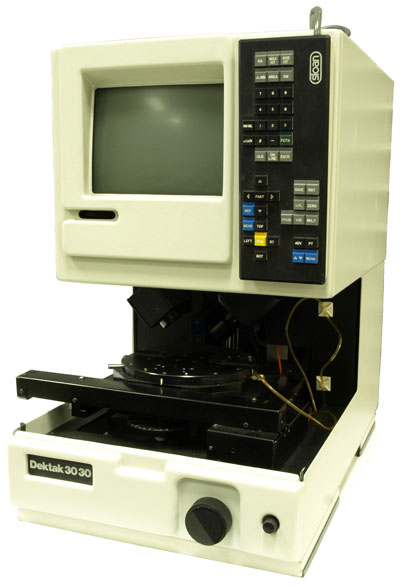

VEECO PROFILOMETER

Profilometers

Profilometer

1 unit @ Best Price

Make: Veeco

Model: Dektak 3030 Auto II

Item ID: 98184

Manufacturer	Veeco
Model	Dektak 3030 Auto II
Description	Profilometer
Controller Type	Microprocessor Controller Type
Accessories	Thermal printer is included Environmental shield is not included

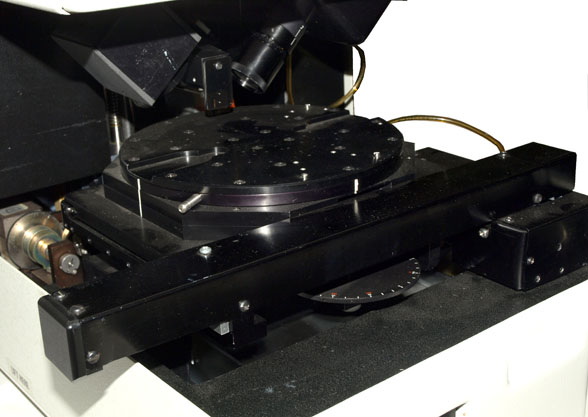

Other Information	Measuring Range: 100Å to 1310kÅ Scan Speed Range: Low, Medium, High Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range, 20Å in the 1310kÅ range Data Points per micron: 0.04-- 40 Scan Length 50 microns to 50 mm Leveling: 2 point programmable or cursor leveling Maximum sample thickness: 1.75 inches Motorized stage Sample stage diameter: 6.375 inches Sample stage translation (from center): X Axis, ±3 inches, Y Axis -3 inches Stylus 12.5 micron radius (other sizes are optional) Unit is tested, see additional images 5 and 6 for sample scans
Power Requirements	120 V 2.0 A 50/60 Hz 1 Phase
