FULL DESCRIPTION of Item 198108

in Vacuum Fittings
Item ID: 198108

Offered 1 Offered at $ 1,250.00

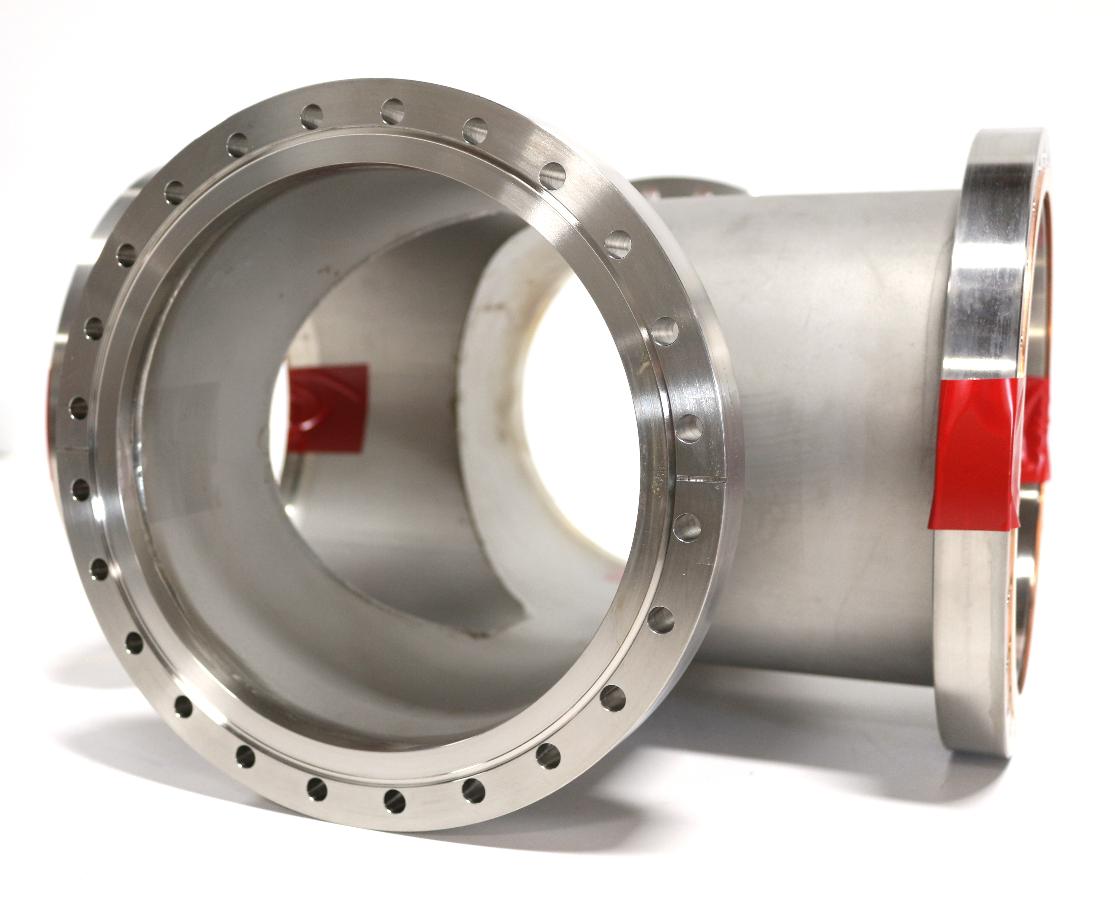

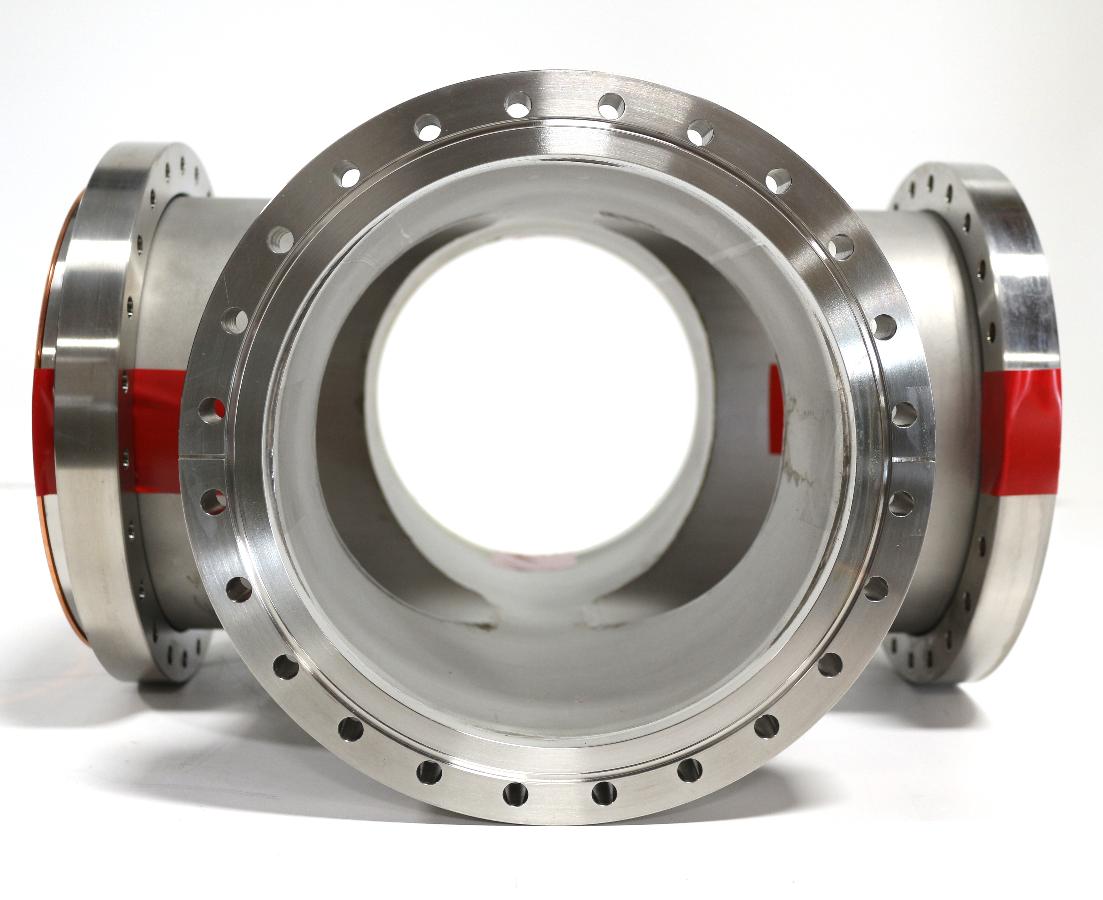

MDC 8" CONFLAT 4-WAY CROSS FITTING

8" Conflat 4-Way Cross

MDC 8" CONFLAT 4-WAY CROSS FITTING
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price $ 1,250.00
Number of Units 1
Manufacturer MDC
Model 405034
Description Cross 4 Way - 8" Conflat
Fitting Type Cross/4 Way
Flange Type Conflat
Flange Size 203.20  mm  (8.00 in)
Fitting Material Stainless Steel
Other Information
  • MODEL REFERENCE: REF# 600-4T
  • PART NUMBER: 405034
  • PART NAME: Cross, 4-Way, 8" Del Seal Flange x 6" OD Tube
  • NOMINAL FLANGE: 8"
  • FLANGE O.D.: 7.97"
  • TUBE O.D.: 6.00"
  • TUBE WALL: .109"
  • BODY TYPE: TUBE
  • WT LB: 10-1/2
  • UHV rated to 1x10-13
  • High temperature rated to 450ºC
  • OFE Copper or optional Viton® elastomer gaskets
  • Clearance bolt holes
  • Conflat® compatible design
  • Standard matte finish
  • Each axis has one rotatable flange

Click HERE for more information

Condition Excellent
