FULL DESCRIPTION of Item 140403

in Other Vacuum Instrumentation
Item ID: 140403

Offered 1 Offered at Best Price

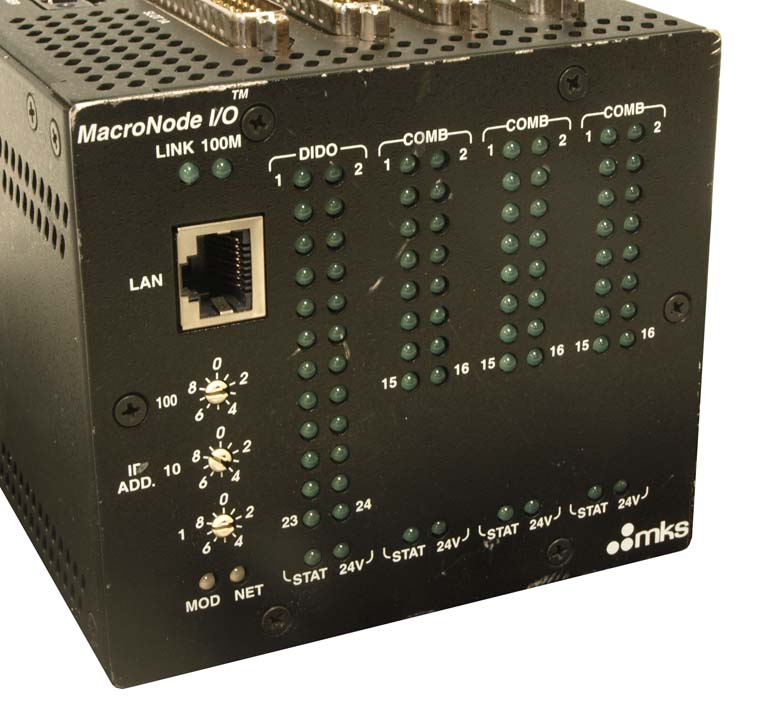

MKS INSTRUMENTS, INC. COMPACT NETWORK I/O

Compact Network I/O

 MKS INSTRUMENTS, INC. COMPACT NETWORK I/O

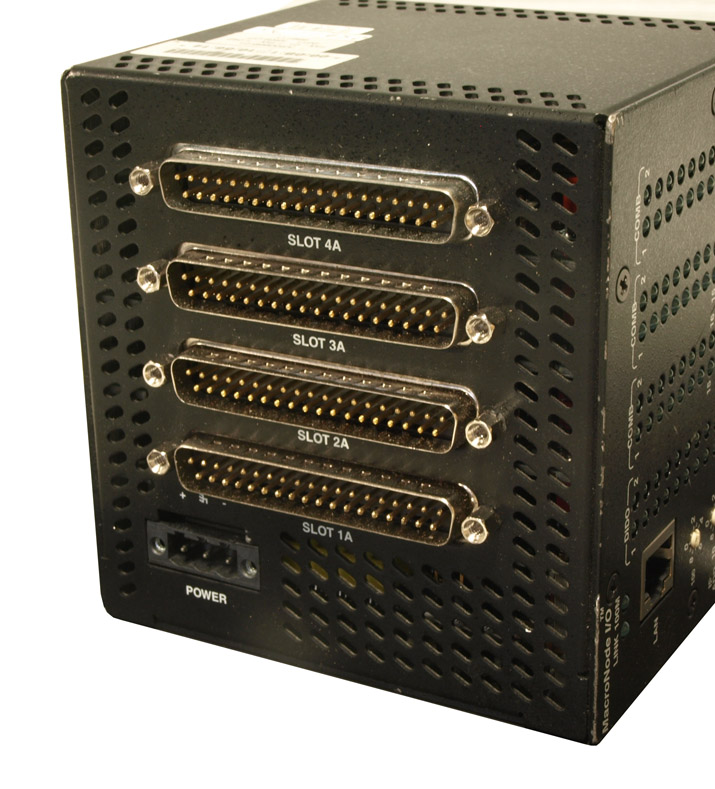

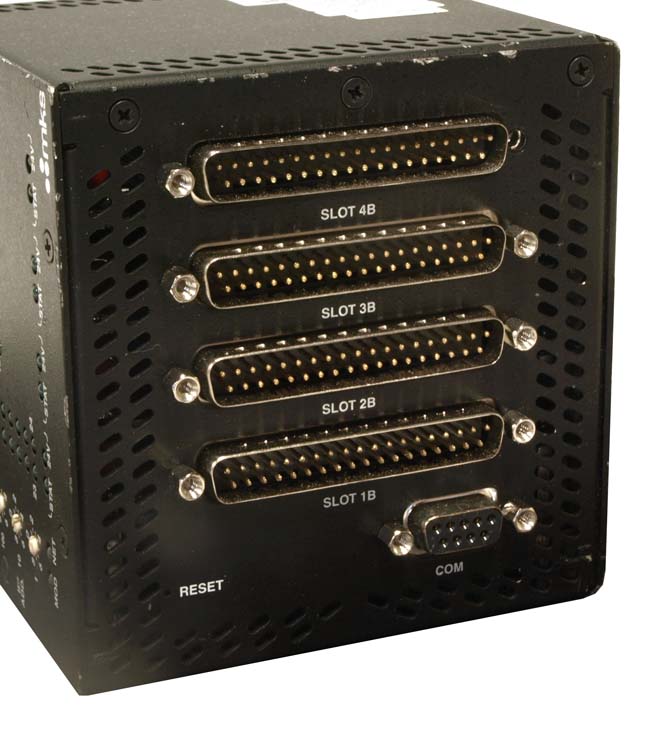

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer MKS Instruments
Model Macronode I/O
Description Compact Network I/O
Other Information

Ethernet,RJ45 with Modbus/TCP
Four slot:
#1: DIDO
#2: COMBO
#3: COMBO
#4: COMBO

Model # AS00969-01

MacroNode™ Dimensions 4"H x 4"W x 1.5"D plus 0.7" per I/O slot I/O Connector 37-pin male D-sub Ethernet Connector 100 BaseT, RJ45 with EMI filter or Fiberoptic connector RS-232 Connector TXD, RXD; DB9 connector Weight 600g (1.32 lb) Operating Temperature 0 to +55C Storage -40 to +85C Humidity 5 to 95% non-condensing BUS Interface Ethernet - Modbus/TCP or Ethernet/IP; EtherCAT; DeviceNet Front Panel Indicators Network Status, Module Status, LINK, 100MB Rotary Switches IP address, operating mode (MacID and Rate for DeviceNet models) Input Powered from I/O connector +24VDC@120 mA Isolation Choke Filtering Card Specifications DIDO Card Number of Digital I/O 24 points (input or output) Digital Input Current Sinking: Active low - 1.5 mA min Current Sourcing: Active high - 1.5 mA min Digital Output Current Sinking: Active low, 200 mA max/channel Current Sourcing: Active high, 200 mA max/channel Current Max: 750 mA per 6 DO AIAO Card Analog Input 16 single-ended points (8 in differential mode) 14 bit Range (-10 to +10V) Analog Output 8 single-ended points 12 bit Range (-10 to +10V) 5mA/channel into a 2 KO load COMBO Card Number of Digital I/O 16 points (input or output) Digital Input Current Sinking: Active low - 1.5 mA min Current Sourcing: Active high - 1.5 mA min Digital Output Current Sinking: Active low, 200 mA max/channel Current Sourcing: Active high, 200 mA max/channel Current Max: 750 mA per 6 DO Analog Input 8 single-ended points (4 in differential mode) 14 bit Range (-10 to +10V) Analog Output 2 differential points 12 bit Range (-10 to +10V) 5mA/channel into a 2 KO load

Exterior Dimensions
  Width 4.250  in  (10.8 cm)
  Depth 4.000  in  (10.2 cm)
  Height 4.250  in  (10.8 cm)
Weight 3  lb  (1 kg)
